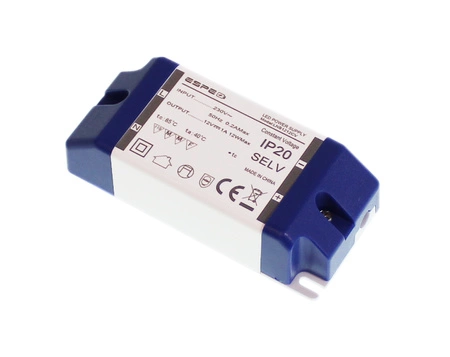

LED power supply 12V 1A 12W ESPE | LNB1212CV

SPECIFICATION:

input parameters:

• input voltage range: 220-240 VAC
• range mains supply voltage frequency: 50 Hz
• maximum inrush current: 40 A
• maximum allowable current consumption: 0.2 A

output parameters:

• control type: CV - constant output voltage
• fixed output voltage: 12 V
• fixed output power: 12 W
• stated load current: 1 A
• energy conversion efficiency: 80%
• maximum take-off time: up to 500 ms

safety features:

• input: over-voltage (OVP), under-voltage
• output: overcurrent (OCP), short-circuit (SCP), overvoltage (OVP): OCP (105-150%) SCP, OVP (32 V)
• automatic return to operation once the cause of the error has ceased
• thermal protection

safety and legal requirements:

• guaranteed insulation voltage strength: 3 kVAC (in. to out.)
• minimum insulation resistance: >10 MΩ
• Compliance with safety standards: EN61347-1, EN61347-2-13 EN60598-1, EN60598-2-6
• Compliance with EMC (emission) standards: EN55015
• compliance with EMC (harmonics) standards: EN61000-3-2, -3-3, Class C
• Compliance with EMC (immunity) standards: EN61547 EN61000-4-2, -4-5, Class C, 8 kV, 4 kV

performance:

• M.T.B.F. lifetime: 30,000 h
• warranty: 2 years
• casing: white ABS plastic
• dimensions: 90x40x24 mm
• weight: 50 g
