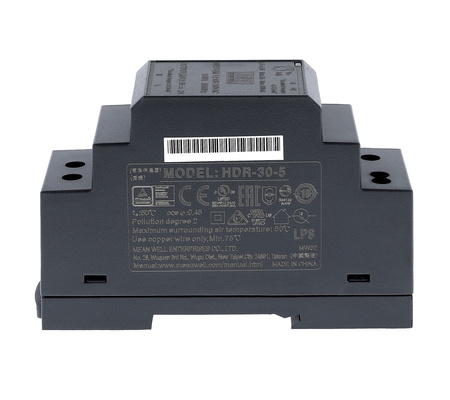

DIN rail power supply 5V 3A 15W MEAN WELL | HDR-30-5
DIN rail power supply 5V 3A 15W MEAN WELL | HDR-30-5
DIN rail power supplies of the HDR-30 series, thanks to their slim housing, are used wherever space is at a premium. They can be successfully used to supply power to a set of devices, as well as being ideal for supplying power to individual systems.
The HDR-30 DIN rail power supplies are often used in industrial automation systems, lighting supply, building automation, etc.
SPECIFICATION:
output parameters:
- Rated output voltage: 5 V
- Rated output power: 15W
- Rated load current 3 A
- voltage adjustment range: 4.5V - 5.5V
- energy conversion efficiency: over 82%
additional information:
- supply voltage: 85-264VAC or 120-370VDC
- mounting on DIN rail TS35 / 7.5 or 15
- operating temperature range from -30 to +70°C
- no-load power consumption <0.3W
- adjustable output voltage
- short-circuit, overload, overvoltage protection
- Free-air cooled
- compliance with LPS
- made in insulation class II
- LED for operation indication
- complies with standards UL-60950-1/508/1310, EN60950-1/61558-2-16
To download
Brand
Symbol
HDR-30-5
Producer code
5904139600726
Series
input voltage AC
85-264VAC
output voltage DC (V)
5V
DC adjustment range
4,5~5,5V
output current (A)
3A
power (W)
15W
efficiency
82%
mains frequency range
47/63Hz
permissible temperature range
-30°~+70°C
IP rating
IP20
enclosure
plastik
dimensons
35x90x54.5mm
weight
120g
