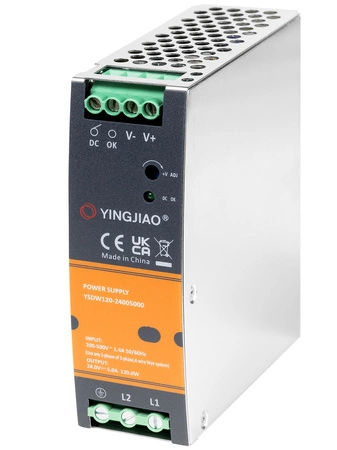

DIN rail power supply 2-phase 180-550VAC | 24V 5A 120W YINGJIAO | YSDW120-24005000

DIN rail power supply 2-phase 180-550VAC | 24V 5A 120W YINGJIAO | YSDW120-24005000

378,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
28 days for free returns
This product is not available in a stationary store
Safe shopping

A series of high-power DIN-rail industrial power supplies in a robust metal housing with features such as potentiometer-based DC voltage regulation, PFC correction and a DC OK relay output. These power supplies are designed for a wide range of applications in industrial automation systems and control systems. They are high-power single- or two-phase power supply units with a wide voltage range (180 ... 550 VAC), high efficiency and operating in a wide temperature range (-30 ... +70ºC). The power supplies have a built-in set of protection circuits against short-circuit, overload, overheating and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards.



SPECIFICATION:

  • Input voltage range: 180~550VAC; 254~780VDC
  • Frequency range of mains supply voltage:  47-63 Hz
  • Control type: CV - constant output voltage
  • Rated output voltage: 24 V
  • output voltage trimmer adjustment: 24-29V
  • Rated output power: 120 W
  • rated load current 5 A
  • max. output voltage ripple:  120mVp-p
  • Energy conversion efficiency:  greater than 91%
  • Operating temperature range:  -30ºC to +70ºC
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • dimensions: 40x125x113 mm
  • weight: 650g
  • enclosure: IP20
  • DIN rail mounting TS-35



CHARACTERISTICS:

  • supply from one or two phases 180...550 VAC
  • robust metal housing
  • relay output DC OK
  • built-in PFC correction
  • low ripple and inrush current
  • category III surge protection
To download
Symbol
YSDW120-24005000
Producer code
5904139607961
Series
input voltage AC
180~550VAC
output voltage DC (V)
24V
DC adjustment range
24~29V
output current (A)
5A
power (W)
120W
efficiency
91%
mains frequency range
47/63Hz
permissible temperature range
-30°~+70°C
IP rating
IP20
enclosure
metalowa
dimensons
40x125x113mm
weight
650g
