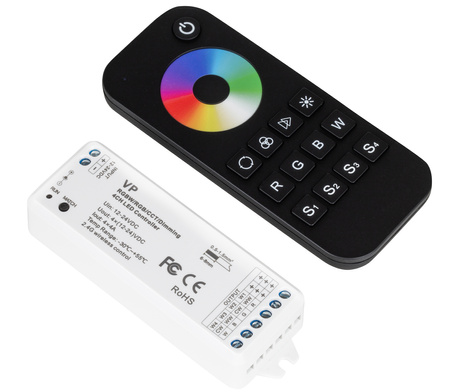

LED 4-channel controller + radio remote control for RGB/RGBW strips | 12-24 VDC

The VP controller is designed to control LED lighting. It supports 4 channels and can control RGB/RGBW strips providing dimming and brightening for each channel, including colour adjustment. The device is switched on between the DC output of the power supply and the lighting (LED strip). The light is controlled using a radio remote control operating in the 2.4 GHz band (after pairing it with the controller). A single remote control can be used to control multiple controllers and up to 10 remote controls can be connected to a single controller.

TECHNICAL PARAMETERS OF THE CONTROLLER:

• number of outputs: 4
• Input voltage:  12-24 VDC
• Maximum load current:  4x 4A
• maximum load power: 4x 48W at 12V / 4x 96W at 36V
• connection: screw connectors 0.5-1.5 mm2
• Compatible power supply type:  CV (constant voltage)
• PWM frequency: 1000 Hz
• range: up to 30 m
• dimensions:  114×38×20 mm
• weight: 52g
• compliance with standards: EMC: EN 301489-1 V2.2.3 / ETSI EN 301 489-17 V3.2.4  / LVD: EN 62368-1:2020+A11:2020  / RED: ETSI EN 300328 V2.2.2
• CE certification
• working temperature: -30...+55ºC
• protections: reverse polarity / overheating / output short circuit / output overload

CHARACTERISTICS:

• compatible with CV (constant voltage) power supplies
• Brightness adjustment from 0 to 100% in 4096 steps
• Operation with single-zone or multi-zone radio remote control (2.4 GHz)
• up to 10 remote controls can be registered
• automatic transfer function - the controller automatically connects to other controllers within a range of up to 30 m
• synchronisation of the regulation of multiple controllers in the installation - multiple controllers can be operated with one remote control
• 10 predefined modes for setting levels and adjustments for RGB/RGBW strips
• Brightening and dimming time adjustable
• Design protected against overheating, overload and short-circuit at the output

PILOT TECHNICAL PARAMETERS:

• operating frequency: 2.4 GHz
• power supply: two AAA batteries
• range: up to 30 m
• battery life: over 1 year
• dimensions: 140x60x26mm
• weight: 88g
• EMC compliant: ETSI EN 301 489-1 V2.2.3
• ETSI EN 301 489-17 V3.2.4:  x= 0.4269 / y= 0.3949
• LVD compliance: EN 62368-1:2020+A11:2020
• RED Compliance: ETSI EN 300 328 V2.2.2
• CE certification
• operating temperature -30...+55ºC
• working environment: indoors
