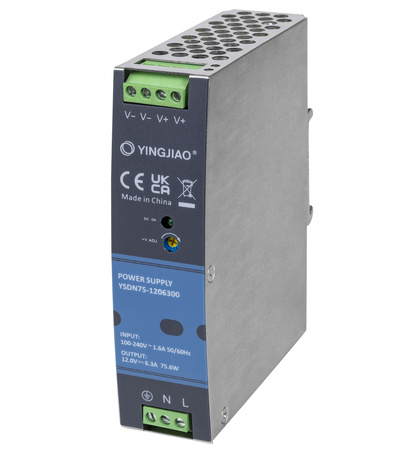

DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300
DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300
DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300
DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300

DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300

91,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
28 days for free returns
Find out in which store you can check the product and buy it right away
DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300
DIN rail power supply 12V 6.3A 75W YINGJIAO | YSDN75-1206300
Safe shopping

A series of industrial 12 and 24 V DIN rail power supplies in a robust metal housing with features such as DC voltage regulation via potentiometer and a DC OK output LED. These power supplies are designed for a wide range of applications in industrial automation systems and control systems. They are single-phase units with high efficiency and operate over a wide temperature range. The power supplies have a built-in set of protection circuits against short-circuit, overload, overheating and bad voltage levels. They provide a high MTBF and a high degree of safety. They comply with international standards.



SPECIFICATION:

  • input voltage range: 100~264VAC; 120~370VDC
  • Frequency range of mains supply voltage:  50-60 H
  • Control type: CV - constant output voltage
  • Rated output voltage: 12 V
  • output voltage trimmer control: 11-14 V
  • Rated output power: 75 W
  • rated load current 6,3 A
  • max. output voltage ripple:  100mVp-p
  • Energy conversion efficiency:  greater than 84%
  • Temperature range:  -20ºC to +70ºC
  • output protection:  overcurrent protection  (OCP), short circuit protection  (SCP), overvoltage protection  (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • dimensions: 32x125x114 mm
  • weight: 410g
  • enclosure: IP20
  • DIN rail mounting TS-35



CHARACTERISTICS:

  • robust metal housing
  • DC OK LED indication
  • high energy conversion efficiency
  • low ripple and excellent stabilisation
  • wide operating temperature range
  • dual output terminals
To download
Symbol
YSDN75-1206300
Producer code
5904139606490
Series
input voltage AC
100-264VAC
output voltage DC (V)
12V
DC adjustment range
11~14V
output current (A)
6,3A
power (W)
75W
efficiency
84%
mains frequency range
50/60Hz
permissible temperature range
-20º~+70ºC
IP rating
IP20
enclosure
tworzywo ABS
dimensons
32x125x114mm
weight
410g
