DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012

DIN rail power supply 12V 2A 24W ESPE | HDN-3012

+ Add to compareAdd to shopping list
Size
uniwersalny
57,99 PLN
incl. VAT / pcs
Lowest price in 30 days before discount: / pcs
Regular price: / pcs
of
You can also buy using:
Free and fast delivery
28 days for free returns
Find out in which store you can check the product and buy it right away
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
DIN rail power supply 12V 2A 24W ESPE | HDN-3012
uniwersalny
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

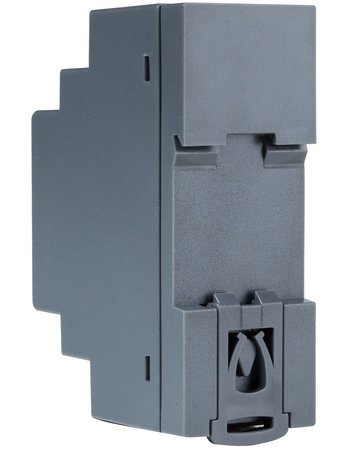

ESPE-HDN3012 is a high-quality, high-performance switching power supply in a 2U wide plastic enclosure for mounting on a TS35 mm DIN rail. Its design is based on high-quality electronic components that allow for continuous, long-term operation. It is reliable, fully protected and stable. It provides high efficiency and excellent technical performance. The perforated housing provides good ventilation, and the trimmer allows accurate voltage adjustment to compensate for voltage drop across the wires. Dual output terminals make it easy to connect receivers.



SPECIFICATIONS:

input parameters:

  • input voltage range 100-240 VAC
  • Frequency range of mains supply voltage:  47-53 Hz
  • no-load power consumption: less than 0.25 W

output parameters:

  • regulation type: CV - constant output voltage
  • Rated output voltage: 12 V
  • output voltage trimmer adjustment: 11.4-12.6 V
  • Rated output power: 24W
  • rated load current 2 A
  • max. output voltage ripple: 150 mVp-p
  • energy conversion efficiency: over 86%

additional information:

  • operating temperature range: 0ºC to +40ºC
  • output protection:  overcurrent protection (OCP), short circuit protection (SCP), overvoltage protection (OVP)
  • input protection:  overvoltage (OVP), undervoltage (UVP)
  • MTBF: 30 h
  • dimensions: 90x58x35 mm
  • weight: 70g
  • housing: IP20

characteristics:

  •  small dimensions
  •  high power output
  •  based on high-end electronic components
  •  All-protected, low surge current
  •  trimmer
  •  perforated housing
  •  LED indicator light

application:

  •  industrial automation systems
  •  alarm and monitoring systems
  •  building automation systems
  •  lighting systems
To download
Brand
ESPE
Symbol
HDN-3012
Producer code
5904139605684
Series
HDN
input voltage AC
100-240VAC
output voltage DC (V)
12V
DC adjustment range
11,4~12,6V
output current (A)
2A
power (W)
24W
efficiency
86%
mains frequency range
47/53Hz
permissible temperature range
0º~+40ºC
IP rating
IP20
enclosure
ABS plastic
dimensons
90x58x35mm
weight
115g
